Ny type 4 hoder 2m5030-4m båndslipe poleringsmaskin for stålstenger
Raske detaljer Opprinnelsessted: Shandong, Kina Merkenavn: HAIGETilstand:NyVideo utgående{{0}}inspeksjon:Medlevert Maskintestrapport:MedlevertMarkedsføringstype:Varmt produkt 2019Garanti for kjernekomponenter:1 årKjernekomponenter:Motorkraft (kW):7,5vekt (KG):0Nøkkelsalgspunkter:Enkelt å betjene Garanti:1 år, 12 måneder Gjeldende bransjer:Produksjonsanlegg Utstillingslokale:Ingen Ettersalgsservice:ingeniører er tilgjengelige for å overvåke på stedetFarge:tilpassetStandard:ISO9001Personellopplæring:utlevertPoleringMaskinNøkkelord:FunishingMaskinProduksjon:Finish :Produktoverflate FinishType:HelautomatiskEtter-salgstjenester:Online support, Video teknisk supportEtter garanti Service:Video teknisk support, Online supportLokal tjenestested:Ingen
Sende bookingforespørsel
produktbeskrivelse
Beskrivelse:
Introduksjon4-head 2M5030-4M er spesielt brukt til grov- og finsliping og polering av lange stangrørarbeidsstykker. Det er 4 grupper slipehoder i dette utstyret. Slipebånd brukes til å slipe og polere den ytre overflaten av arbeidsstykket. Arbeidsstykket
kan maskineres kontinuerlig i batcher eller enkelthode og multi-hode med roterende og kontinuerlig matet inn og lastet
og losses automatisk, som har egenskapene til stabil maskineringsnøyaktighet, god overflatekvalitet, høy effektivitet, 5- lav arbeidsintensitet. Laste- og lossestativet er pneumatisk kontroll, og slipeprosessen er våtslipemodus, som kan kontrollere slipekvaliteten og forbedre produksjonsmiljøet mer stabilt. Den er egnet for masseproduksjon av rør
og bardeler.
Quality: Our company regards quality as life. We have already passed ISO9001 certification, and strictly implement the ISO9001 international quality management system. We keep improving quality in order to let customers buy with comfort and use with satisfaction.Our company can also make specified equipment according to customers' requirement.Our service:1. Free quality guarantee period for 12 months, except for wearing parts. 2. Free provide long-term technical support 3. Free train buyer's operator in seller's factory 4. Fast response service within 24 hours 5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs.Packaging and shippingwe have much experience in exporting transportation packaging.Taking multi protection measures:The first layerwrapping with foam film and stretch film for the special components, in order to avoid moisture.Second layerinside of plywood box, adopting small square plywood block and strapping belt to fix.Third layerthe machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.Fourth layerin a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.
Spesifikasjon
Main Parameters1 Specification of Grinding Belt: 4{{20}}00150mm (circumferencewidth)2. Grid of belt: 36400(optional within this range)3Diameter range of workpiece: Φ60Φ 200mm4Length range of workpiece: 30006000mm5Material of workpiece: Carbon steel, stainless steel6Curvature of workpicec: Less than or equal to 3/1000mm8Surface roughness: Ra Less than or equal to 1.6μ m (before polished : Less than or equal to 12μ m)9Weight of single workpiece: Less than or equal to 1500kg10Unilateral grinding depth: Less than or equal to 0.25mm11Specification of contact wheel of grinding belt: Φ 400150mm (diameterwidth)12Linear velocity of grinding belt: 30m/s13Rotational speed of conveying wheel: 20-50r/min (frequency conversion Adjustable)14Axial feeding rate: 0.14m/min(rate adjustment in continuously transmission ,by Variable frequency transmission motor)15Motor power of grinding head: 22kw (4 pcs)16Motor power of conveying wheel: 5.5 kw (2 pcs)17Motor power of lifting grinding head : 0.37 kw (4 pcs)18Motor power of synchronously movement of conveying wheel: 4 kw20 Motor power of mist absorber: 5.5 kw21Motor power of grinding fluid pump 2.2kw(1pcs)22Power supply: AC 3 phase 380v 50HZ input power: 123kw23 Air supply: 0.4—0.6Mpa 0.6m3/min24 machine overall dimension: 2300060003300mm (lengthwidthheight)25 weight of machine: 22T

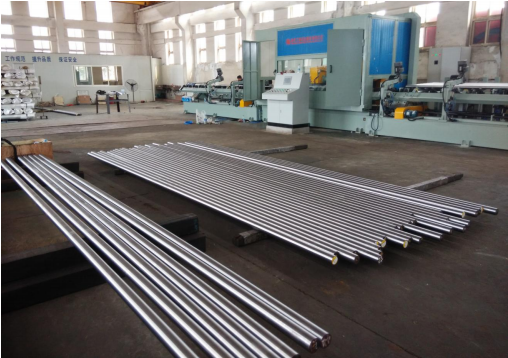

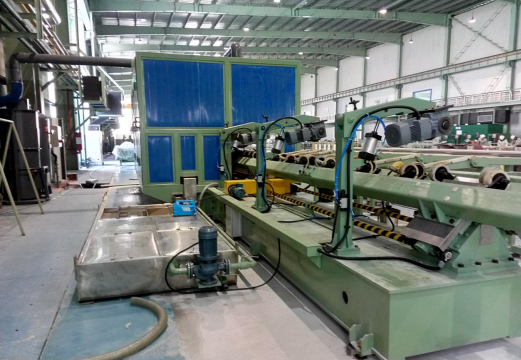

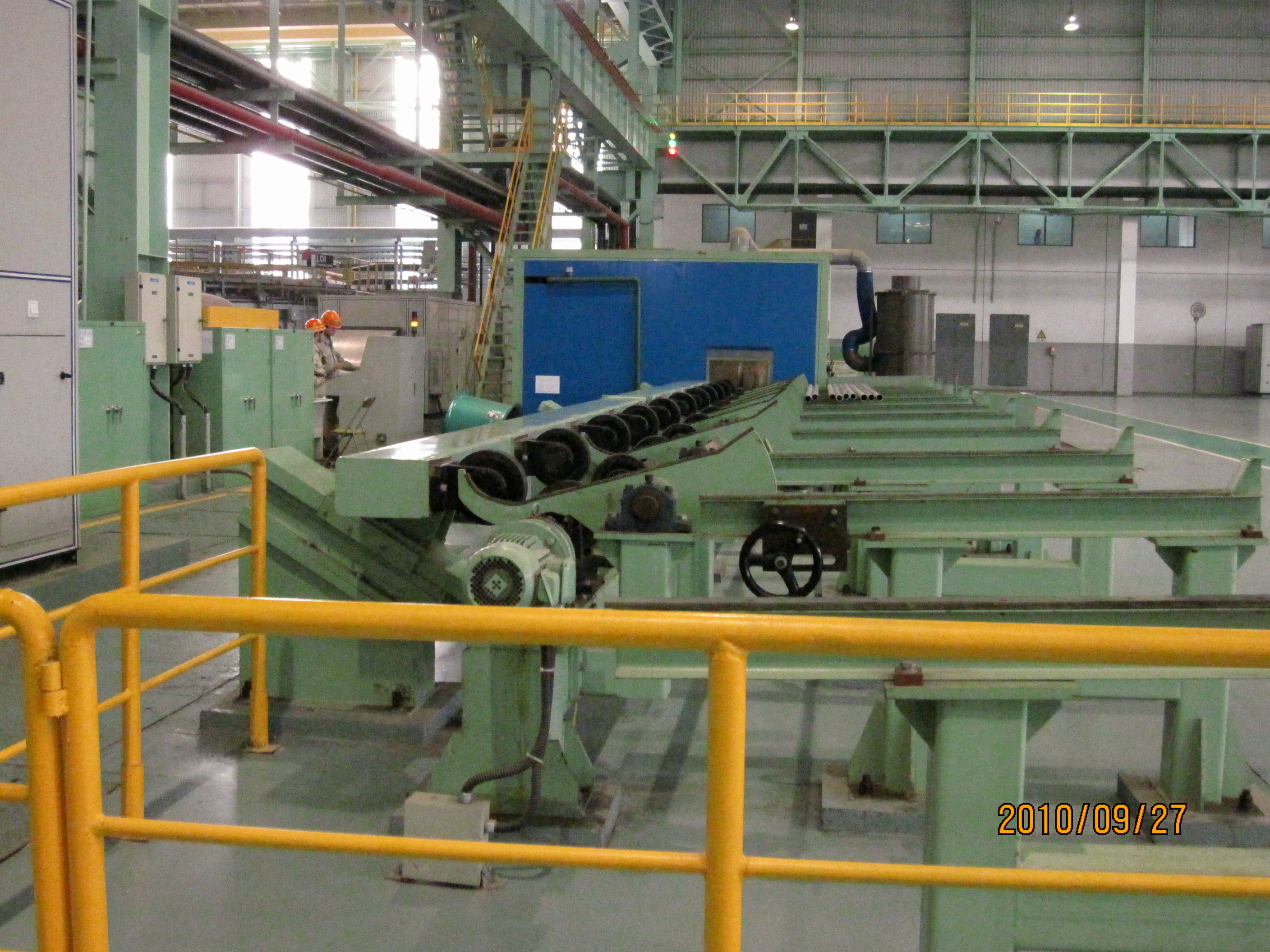

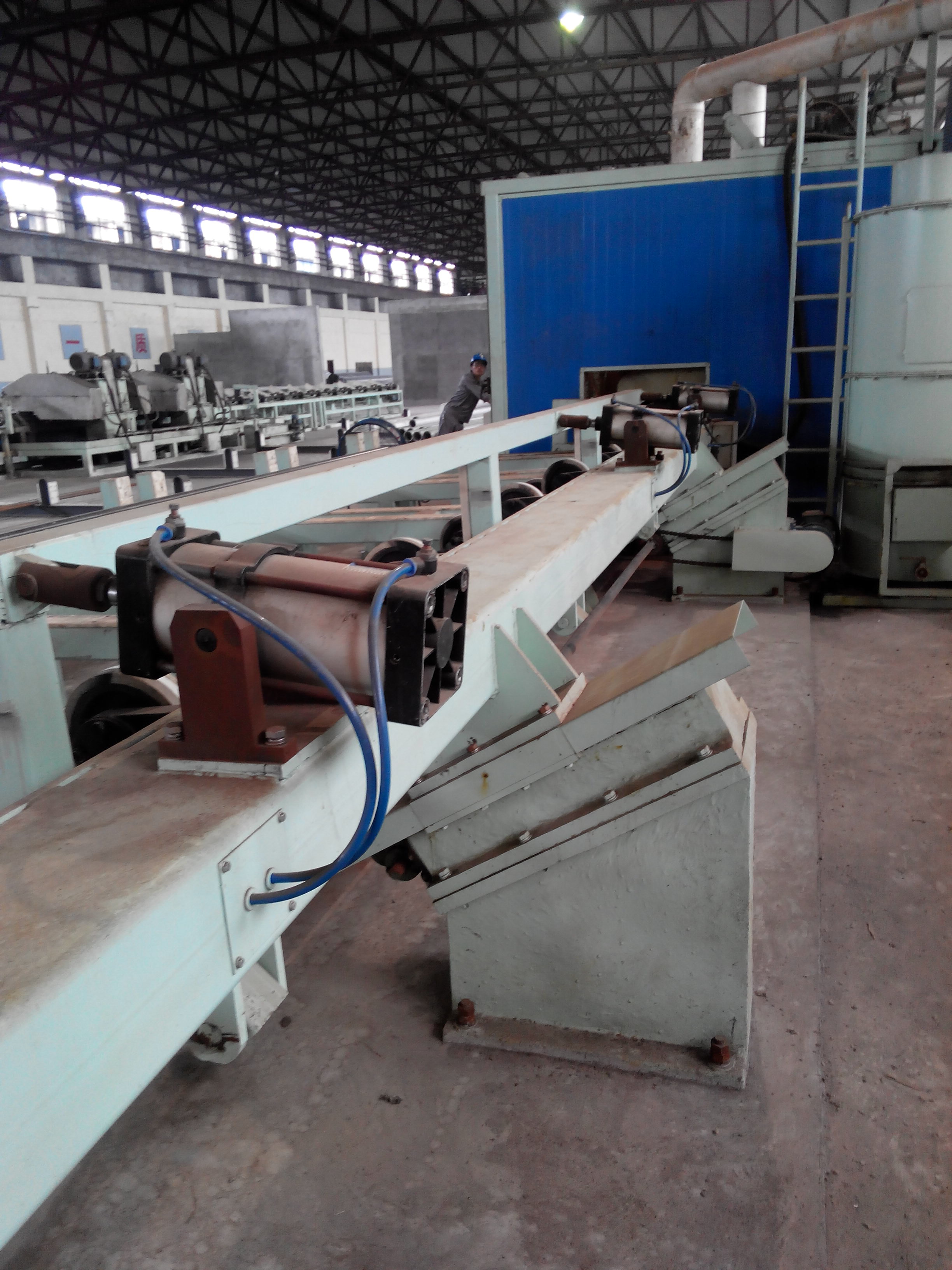

Produktvisning
